Quality control of segmentation results#

Why Segmentation Quality Matters in Biological Imaging#

Segmentation is a foundational step in microscopy image analysis, whether it’s to quantify cell morphology, assess protein localization, or classify phenotypes. Poor segmentation cascades into poor science:

Biological Inference Depends on Accuracy:#

  • Cell shape and area are used as proxies for health, cell cycle stage, or treatment effects.

  • Subcellular segmentation informs protein distribution and co-localization analysis.

Downstream Analysis Tasks Affected:#

  • Counting: Number of cells, nuclei, or organelles.

  • Morphometrics: Size, shape, and orientation distributions.

  • Spatial Context: Distance to neighbors, clustering, localization to boundaries.

  • Time-lapse Analysis: Tracking errors arise from poor initial segmentation.

Experimental Reproducibility and Interpretability:#

  • Segmentations must be robust across batches, stains, and acquisition settings.

  • Quality control is essential for reproducible quantitative biology.

Types of Segmentation Errors in Microscopy#

Over-Segmentation (Fragmentation)#

  • Single nucleus or cell is split into multiple smaller fragments.

  • Common in: Aggressive watershed or Cellpose when boundary signals are strong.

  • Impact: Inflates cell counts; distorts shape descriptors like solidity or eccentricity.

overseg

Under-Segmentation (Merging)#

  • Adjacent cells or nuclei are grouped into a single blob.

  • Common in: Dense tissues or images with overlapping/poor contrast.

  • Impact: Loss of individual cell-level information; affects downstream tracking and phenotype calling.

underseg

Spurious Detections (False Positives)#

  • Non-cell regions (debris, staining artifacts, air bubbles) incorrectly labeled as cells.

  • Impact: Skewed statistics, especially when looking at low-frequency cell types or rare events.

Missed Detections (False Negatives)#

  • True cells/nuclei are not detected at all.

  • Common in: Dim or out-of-focus regions, shadowed objects.

  • Impact: Underestimation in population size; missed biological insights.

Boundary Errors#

  • Poor delineation of the cell membrane or nuclear edge.

  • Impact: Affects quantification of membrane-localized proteins, shape analysis, or proximity-based measurements (e.g., cell-cell contact).

boundary error

Topological Errors#

  • Holes in the nuclear region, disconnected fragments, broken membranes.

  • Impact: Miscalculates features like convexity, number of lobes, or cell polarity.

topology error

Real-World Impact of QC Failures in Microscopy#

Biological Task

Example Error

Consequence

Cell Counting (e.g., DAPI)

Over-segmentation of elongated nuclei

Overestimated cell counts

Organelle Localization

Missed mitochondria in low-SNR regions

Incorrect spatial distribution assessment

Drug Response Screening

Artifacts misclassified as apoptotic bodies

False positives in treatment effect

Tissue Analysis (Histology)

Domain shift between scanners

Unusable predictions; poor reproducibility

Qualitative Evaluation#

Quantitative metrics can miss:#

  • Systematic biases (e.g., always missing small regions)

  • Localization errors

  • Visual artifacts

  • Useful during development, debugging, and annotation correction

Visual Inspection Techniques#

Overlays

  • Overlay predicted mask onto the original image (use color-coded transparency)

  • Helpful to assess boundary alignment and mis-segmentation

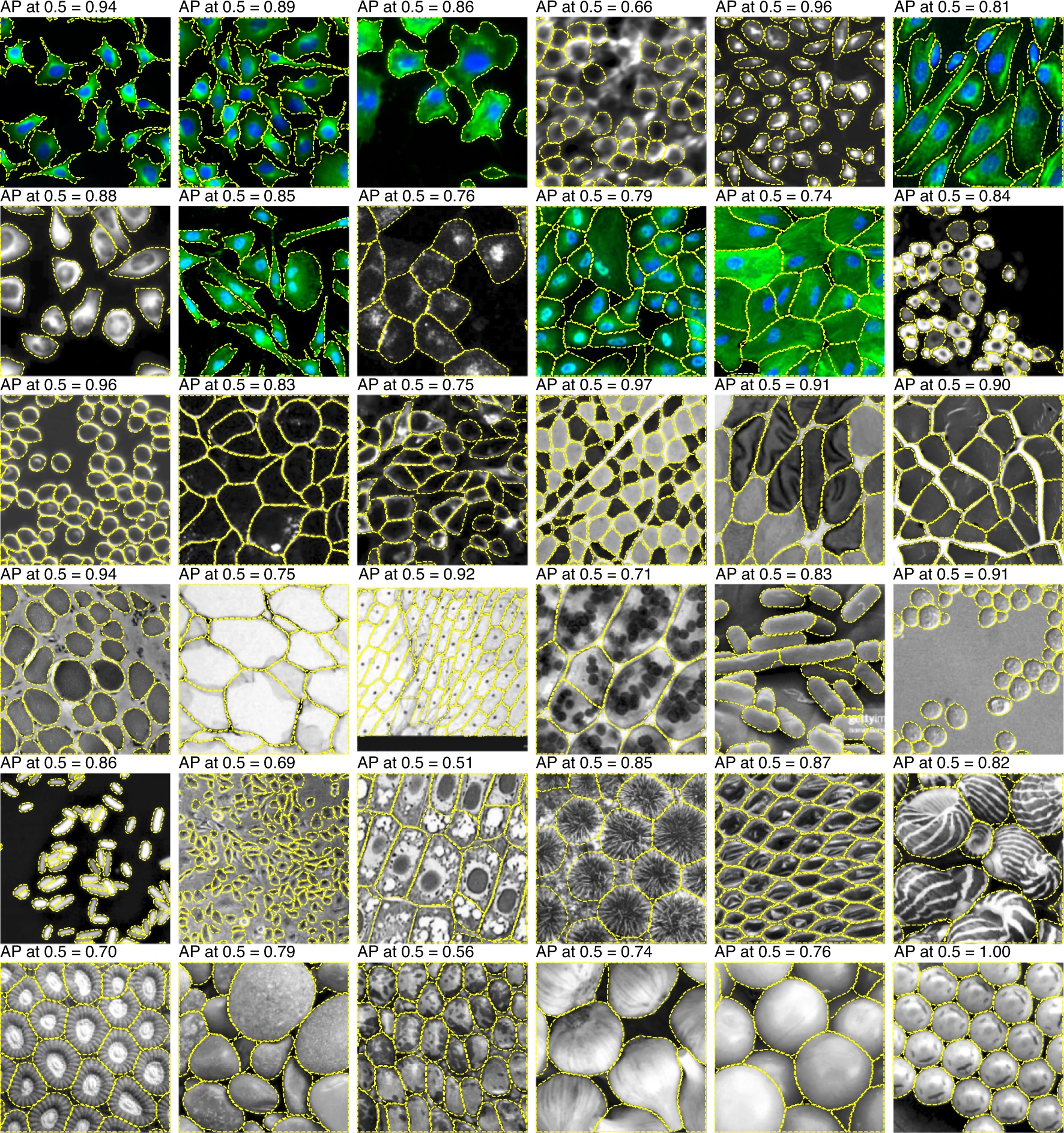

Example: cellpose overlay

Tools and Viewers#

Napari:

  • Python-based interactive viewer

  • Supports image layers + masks

  • Plugins for segmentation QC (e.g., napari-annotator, napari-skimage-regionprops)

Fiji/ImageJ:

  • Overlay images and ROIs

  • Histogram/statistics on masks

QuPath:

  • For histopathology; robust QC on large slides

3D Slicer / ITK-SNAP:

  • For 3D volumetric medical image segmentation review

Native Python Libraries:

  • Matplotlib, scikit-image, open-cv

Best Practices for Visual QC#

  • Randomly sample across dataset and classes

  • Use stratified samples for small object classes

  • Run qualitative QC especially after augmentation or domain adaptation

  • Always log QC outputs during training for reproducibility

Quantative Evaluation#

Quantitative evaluation provides objective numerical measures of how well a segmentation model performs. These are essential for:

  • Comparing models

  • Performing hyperparameter tuning

  • Ensuring generalizability

Pixel-level#

1. Dice Similarity Coefficient (DSC) / F1 Score Measures overlap between ground truth 𝐺 and prediction 𝑃.

\( DSC = \frac{|G| + |P|}{2|G∩P|} \)

Value range: 0 (no overlap) to 1 (perfect match)

2. Jaccard Index (Intersection over Union - IoU) Measures the intersection (overlap) over the union.

\(IoU= \frac{∣G∪P∣}{∣G∩P∣}\)

​ Often reported for multiple thresholds (e.g., IoU@0.5, IoU@0.75)

3. Pixel-wise Accuracy Accuracy of correctly classifying the pixel class.

\(Accuracy = \frac{TP + TN}{TP + TN + FP + FN}\)

Not reliable for imbalanced datasets

Object-level and Instance Metrics#

True Positive (TP), False Positive (FP), False Negative (FN)

  • TP: predicted object matches a ground truth

  • FP: extra prediction

  • FN: missed object

Metric Examples:

  • Precision: \(\frac{TP+FP}{TP}\)

​- Recall: \(\frac{TP+FN}{TP}\)

​- F1 Score at object level

Mean Average Precision (mAP)

  • Considers overlap between matched instances using IoU thresholds (e.g., @0.5)

Code Tools for Evaluation#

  • scikit-learn: precision_score, recall_score, f1_score

  • monai.metrics: for HD, ASD, Dice, IoU

  • medpy.metric: specialized medical metrics

  • torchmetrics: ready-to-use PyTorch metrics

Coding Examples#

Qualitatie Evaluation#

import matplotlib.pyplot as plt
from skimage.io import imread
from skimage.measure import label
from skimage.segmentation import mark_boundaries
from skimage.color import label2rgb
import numpy as np

# File names
images = ['1GRAY.tif', '2GRAY.tif']
masks  = ['1.tif',  '2.tif']

fig, axes = plt.subplots(nrows=2, ncols=4, figsize=(16, 8))

for i in range(len(images)):
    # Load image and mask
    img = imread(f'data/{images[i]}', as_gray=True)
    mask = imread(f'data/{masks[i]}', as_gray=True) > 0.5

    # Normalize image for blending
    img_norm = (img - img.min()) / (img.max() - img.min())

    # Create overlay
    labeled_mask = label(mask)
    overlay = label2rgb(labeled_mask, image=img_norm, bg_label=0, alpha=0.4)

    # Create boundary-marked image
    boundary = mark_boundaries(img_norm, mask.astype(int), color=(1, 0, 0))  # Red boundaries


    # Plot original, mask, overlay
    axes[i, 0].imshow(img, cmap='gray')
    axes[i, 0].set_title(f'Image {i+1}')

    axes[i, 1].imshow(mask, cmap='gray')
    axes[i, 1].set_title(f'Mask {i+1}')

    axes[i, 2].imshow(overlay)
    axes[i, 2].set_title(f'Overlay {i+1}')

    axes[i, 3].imshow(boundary)
    axes[i, 3].set_title(f'Boundary {i+1}')

# Clean up axes
for ax in axes.flatten():
    ax.axis('off')

plt.tight_layout()
plt.show()

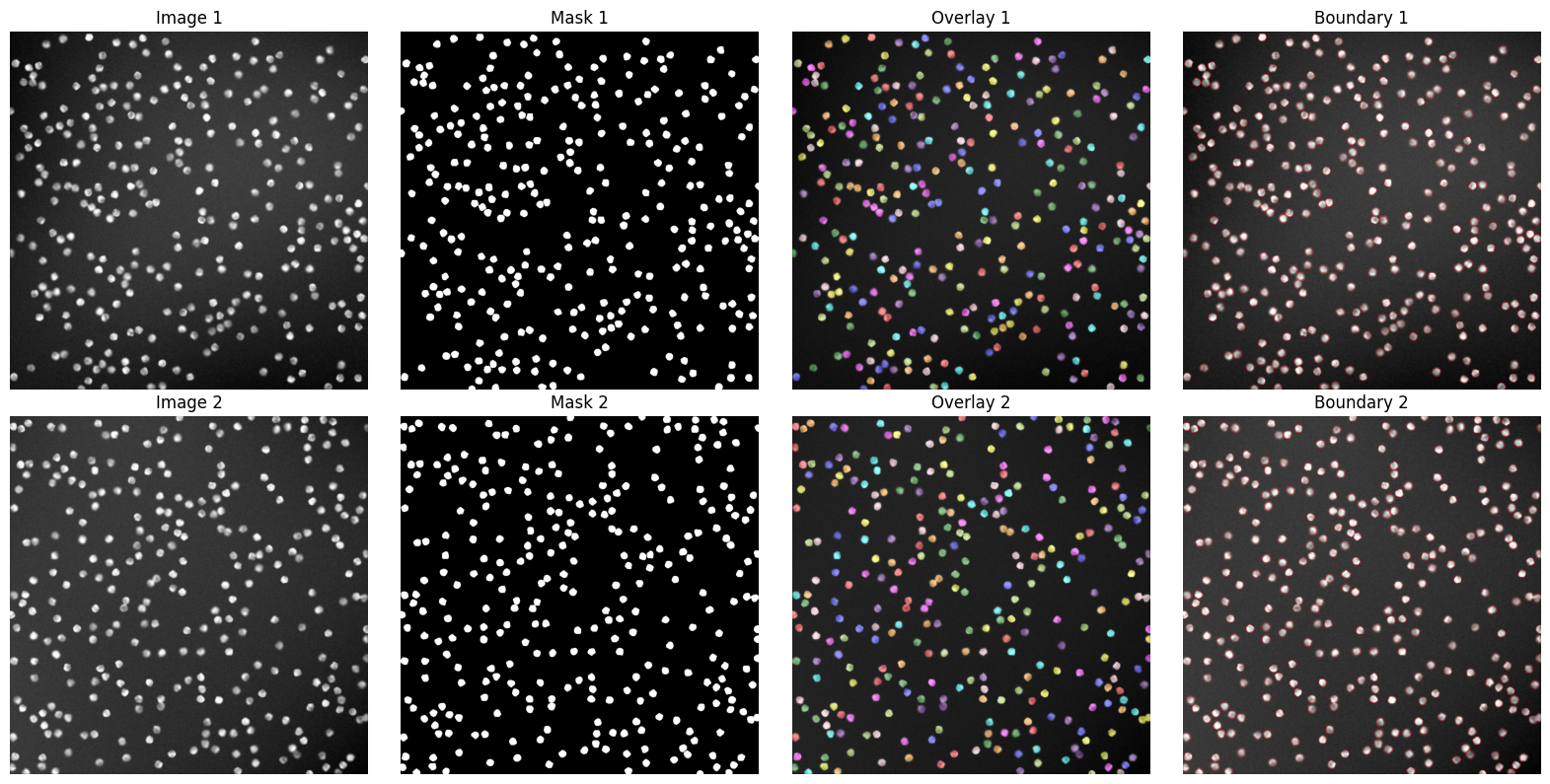

../../_images/4c461f515d66a9c4c8aa92eb600d2b6525fa96ee7642a04da2e16385ad2995b9.png

Quantitative Evaluation#

import matplotlib.pyplot as plt
from skimage.io import imread
from skimage.measure import label
from skimage.segmentation import mark_boundaries
from skimage.color import label2rgb
import numpy as np

# File names
images = ['1GRAY.tif', '2GRAY.tif']
masks  = ['1.tif',  '2.tif']
preds = ['1PRED.tif', '2PRED.tif']

fig, axes = plt.subplots(nrows=2, ncols=3, figsize=(12, 8))

for i in range(len(images)):
    # Load image and mask
    img = imread(f'data/{images[i]}', as_gray=True)
    mask = imread(f'data/{masks[i]}', as_gray=True) > 0.5
    pred = imread(f'data/{preds[i]}', as_gray=True) > 0.5

    # Normalize image for blending
    img_norm = (img - img.min()) / (img.max() - img.min())


    # Plot original, mask, overlay
    axes[i, 0].imshow(img, cmap='gray')
    axes[i, 0].set_title(f'Image {i+1}')

    axes[i, 1].imshow(mask, cmap='gray')
    axes[i, 1].set_title(f'Mask {i+1}')

    axes[i, 2].imshow(pred, cmap='gray')
    axes[i, 2].set_title(f'Predicted {i+1}')


# Clean up axes
for ax in axes.flatten():
    ax.axis('off')

plt.tight_layout()
plt.show()

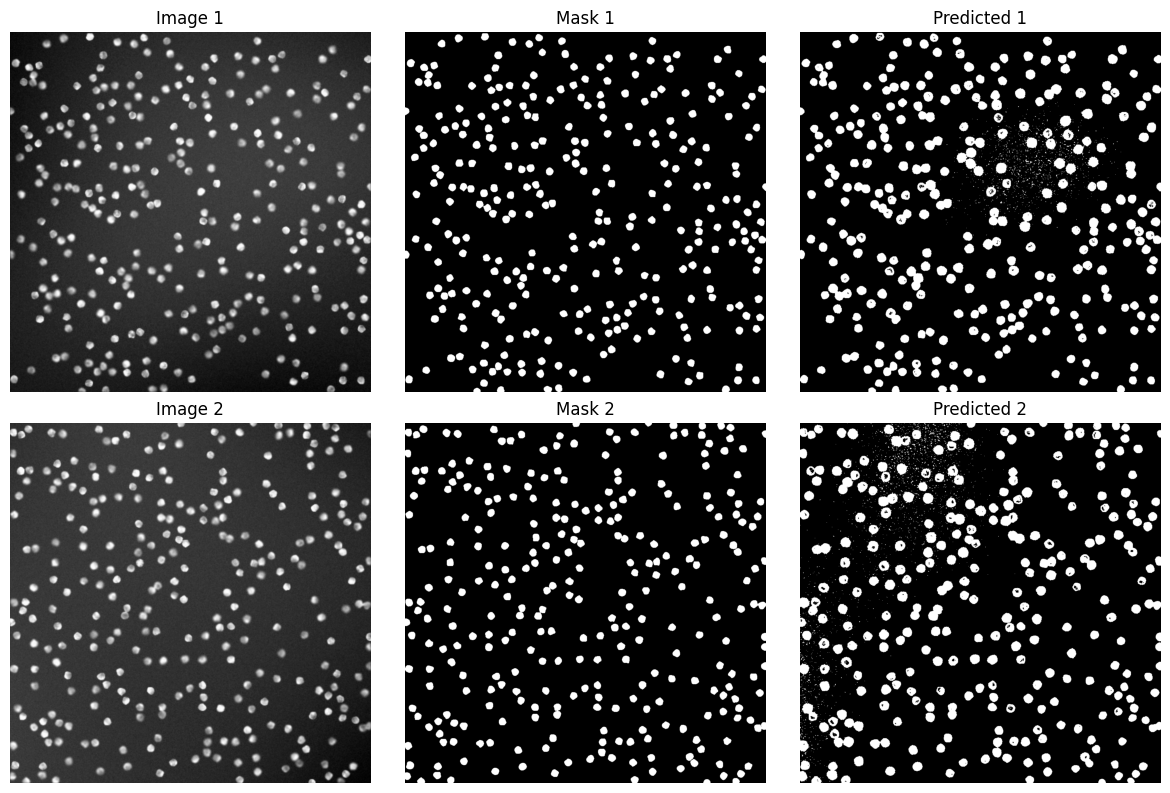

../../_images/af12ac2573ff3390e6c67be5c0524851cac45cfba50e027290dbacaee9ba37f9.png
import numpy as np
from skimage.io import imread

# Load masks (convert 0/255 to binary 0/1)
gt = imread('data/1.tif', as_gray=True) > 0.5
pred = imread('data/1PRED.tif', as_gray=True) > 0.5

# Flatten for metric calculation
gt_flat = gt.flatten()
pred_flat = pred.flatten()

# Dice Coefficient
intersection = np.sum(gt_flat * pred_flat)
dice = (2. * intersection) / (np.sum(gt_flat) + np.sum(pred_flat))
print(f"Dice Coefficient: {dice:.4f}")

# IoU
union = np.sum(np.logical_or(gt_flat, pred_flat))
iou = intersection / union
print(f"IoU: {iou:.4f}")

Dice Coefficient: 0.8110
IoU: 0.6821
